Description

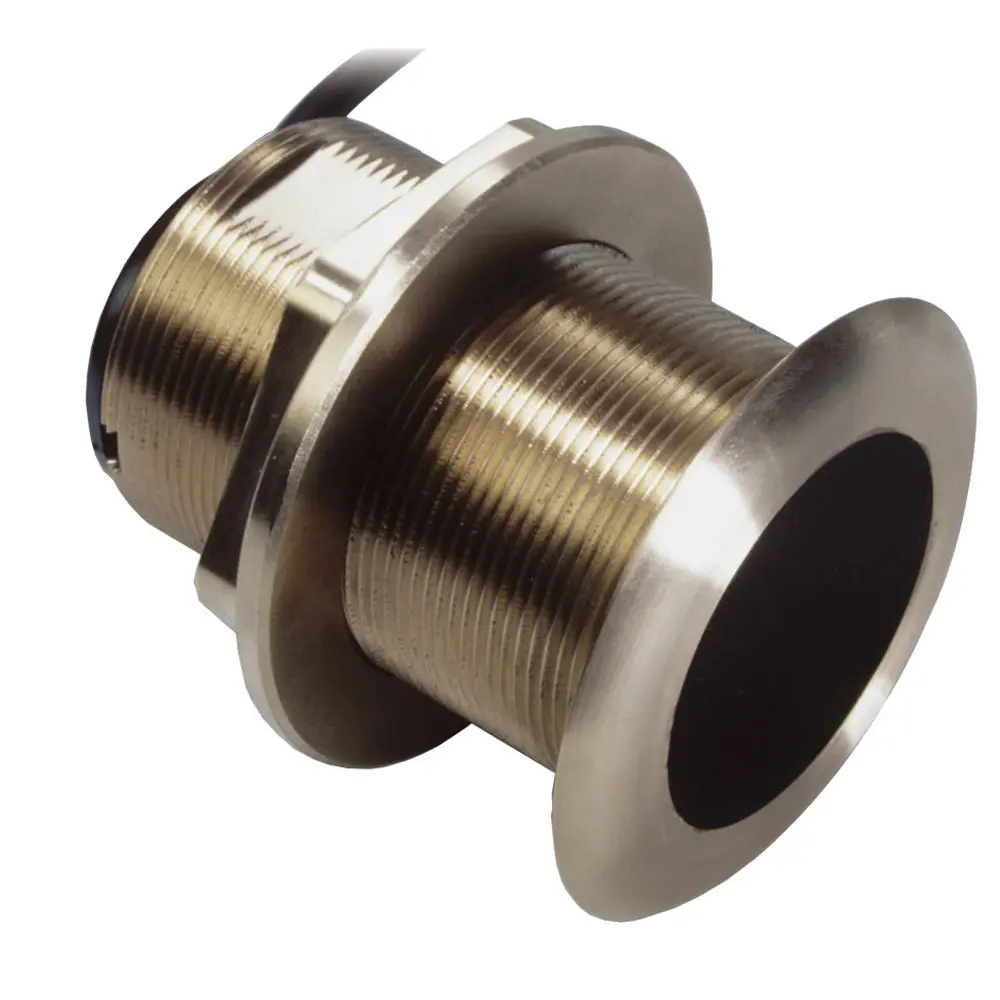

The B60 is a high-performance 600W, 50/200 kHz transducer that integrates Airmar’s innovative Tilted Element™ technology. Designed for boaters who want a flush-mounted installation without the need for a bulky fairing block, this transducer features a ceramic element fixed at a specific angle within the housing. When installed nearly flush with the hull, the internal tilt compensates for your boat’s deadrise, orienting the beam directly toward the bottom to ensure maximum echo returns and highly accurate depth readings.
Engineered for center-console and trailered boats, the low-profile bronze housing extends only 5 mm (3/16″) outside the hull, ensuring there is no impact on your vessel’s running performance. This durable housing is ideal for fiberglass or wood hulls and provides reliable performance for both leisure yachting and serious fishing applications.
Features:
- Integrated depth and fast-response water temperature sensing
- 600W of power for superior underwater clarity
- Dual-frequency element:
- 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200′)
- 200 kHz with a 12° beamwidth for depth performance to 206 m (700′)
- Low-profile design minimizes drag and maintains hull efficiency
- Internal arrow on the cap simplifies installation by pointing toward the keel
- Suitable for boats up to 8 m (26′) in length
Specifications:
- Power Rating: 600W
- Frequency: 50/200 kHz
- Max Deadrise Angle: Up to 24°
- Housing Material: Bronze
- Functions: Depth, Temperature
- Hull Material Compatibility: Fiberglass or wood

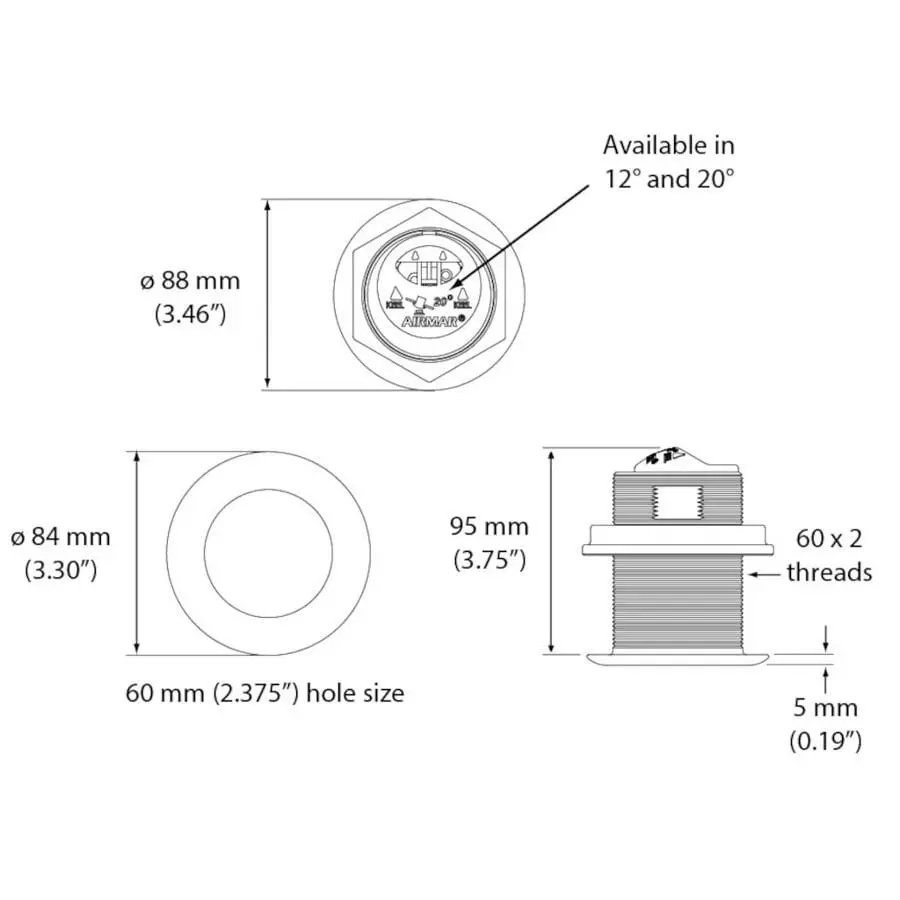

- Hole Size: 60 mm (2-3/8″)
- Usable Shaft Length: 68.5 mm (2.70″)
- Acoustic Window: Urethane
- Conventional Beam: 45°/12°
- Mounting Style: Tilted Element Thru-Hull
- Weight: 1.4 kg (3 lbs)
Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns regarding technical performance or warranty.
