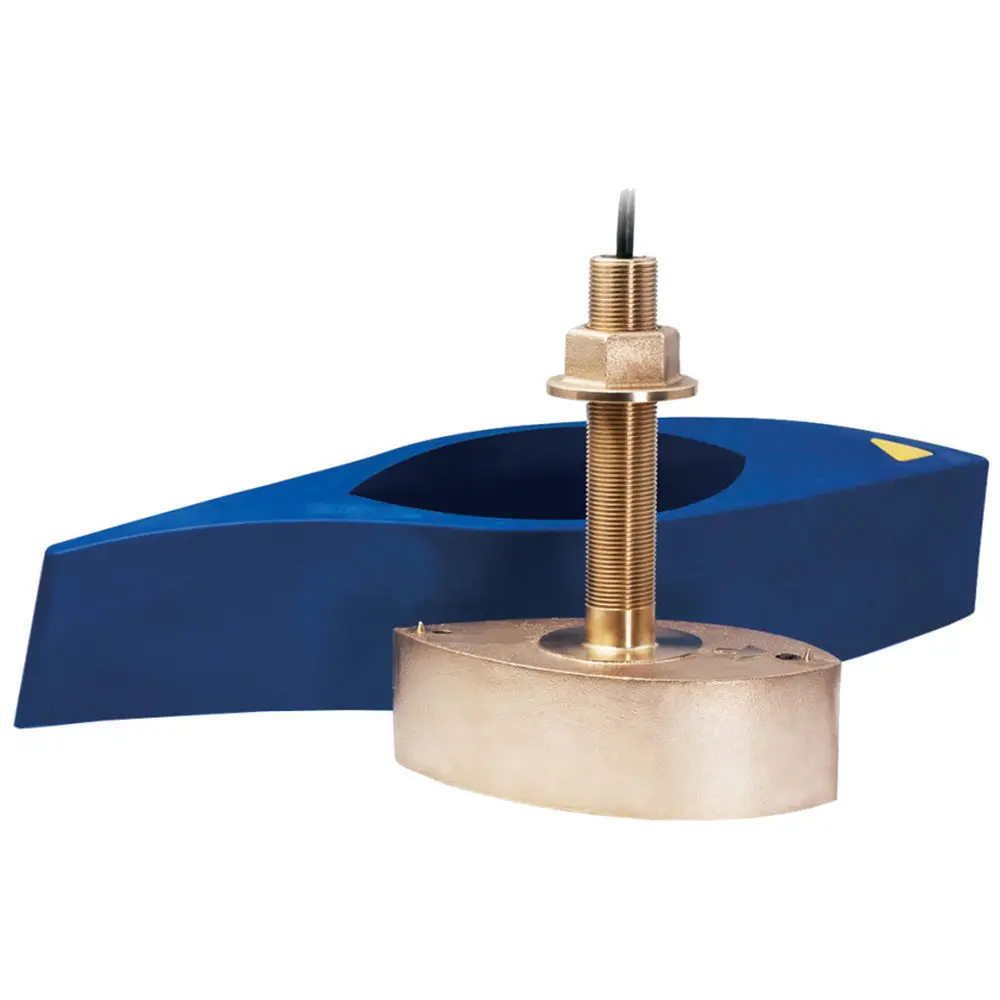

Airmar B275LH-W Bronze 1 kW Thru-Hull Transducer

Description

Get superior coverage and high-resolution imaging under your boat with this professional-grade Bronze Thru-Hull Chirp-ready transducer. Designed for both inshore and pelagic fishing where maximum coverage is essential, this transducer utilizes a unique wide-beam format to provide twice the coverage on your display compared to traditional high-frequency, narrow-beam alternatives. The high-wide band creates crisper, larger return images, making it easier to detect fish in the upper water column that might otherwise go unseen.

The low-frequency band delivers 1 kW of power for exceptional deep-water performance, while the high-frequency band operates with a constant 25° beamwidth for superior resolution and fish-target separation. Whether you are navigating shallow coastal waters or fishing in the deep ocean, this dual-band solution offers the best of both worlds. The included high-performance fairing ensures optimal broadband results and clear readings even at speeds exceeding 30 knots.

Features:

• Dual-band CHIRP-ready technology for depth and fast-response water-temperature sensing
• 1 kW of power for deep-water penetration and performance
• Constant 25° beamwidth on high frequency for consistent coverage across the entire band
• High-wide beamwidth yields superior shallow-water detail and fish detection
• Bronze housing with high-performance fairing for improved performance at higher speeds
• Patented Xducer ID® technology for automatic sensor recognition
• Compatible with various Mix & Match cable systems for seamless integration

Specifications:

• Frequency Range: Low: 42 to 65 kHz | High: 150 to 250 kHz
• Beamwidth: Low: 25° to 16° | High: 25° Constant
• Power Rating: 1 kW
• Maximum Depth: Low Frequency: 914 m (3,000′) | High Wide: 152 m (500′)
• Housing Material: Bronze with Urethane acoustic window
• Deadrise Range: Up to 20° with fairing
• Functions: Depth and Temperature
• Hull Compatibility: Fiberglass or wood
• Hole Size: 30 mm (1-3/16″)
• Cable Length: 10 m (33′)

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
