Description

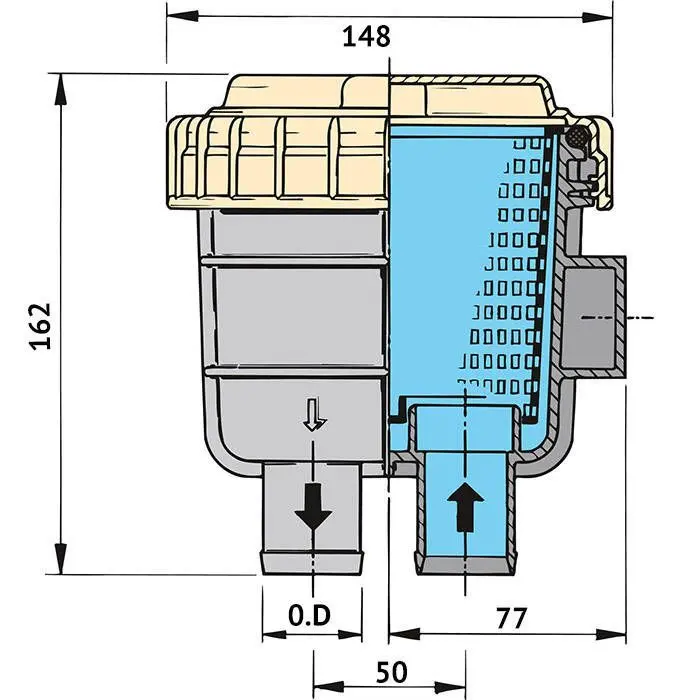

The Vetus FTR330 Series Cooling Water Strainer is a relatively low maintenance strainer that is designed to handle multiple gallons per minute of water flow. Its transparent cover makes inspections a breeze and because it is removeable, the filter element is easy to clean.
Features:
- Cooling water strainer
- Includes a transparent cover for easy inspection of the filter content. Cover is removable by simply unscrewing a single central knob
- The strainer can be easily mounted using the separate wall bracket
- Strainer can be rotated 360° to align the hose connections
- The polished stainless steel mounting bracket clamps it securely in place
- Parallel connection of (2) strainers can be done (strainers are sold individually)
- With (2) water strainers in parallel a larger capacity can be obtained
- With (2) water strainers in parallel and with the use of (2) extra valves (valves sold separately) it is possible to clean each filter separately, while the engine is running
- Low maintenance: The filter element requires infrequent cleaning due to the large, active surface area
Specifications:
- Housing material: Polypropylene GF
- Strainer element: HD Polyethylene
- Lid material: Polypropylene GF
- Mounting bracket: Polypropylene GF/Stainless steel
- Max. ambient temperature: 75° C (167° F)
- Max. water temperature: 55° C (131° F)
- Max. pressure: 0.5 bar (50 kPa, 7 psi)
- Recommended Input:
- 12.7 mm (1/2″) Inlet/Outlet Diameter: 23 L/minute
- 15.9 mm (5/8″) Inlet/Outlet Diameter: 35 L/minute
- 19.1 mm (3/4″) Inlet/Outlet Diameter: 51 L/minute
- 25.4 mm (1″) Inlet/Outlet Diameter: 91 L/minute
- 31.8 mm (1-1/4″) Inlet/Outlet Diameter: 143 L/minute
- 38.1 mm (1-1/2″) Inlet/Outlet Diameter: 200 L/minute
Installation:
- Always install the water strainer above the waterline
- Mount the strainer against a vertical bulkhead
- Always Install a sea-cock on the water inlet scoop
- Always use flexible hose for both connections
- Water scoop to strainer
- Strainer to engine
- Use only water and/or soap to ease fitting the hoses to the hose connections
- Never use products containing grease or oil
- Fit each hose connection with (2) stainless steel hose clamps (sold separately)
- Pay attention to the flow direction through the filter
Note: imperial dimensions are approximate, the manufacturer built this product to metric specs.
