Description

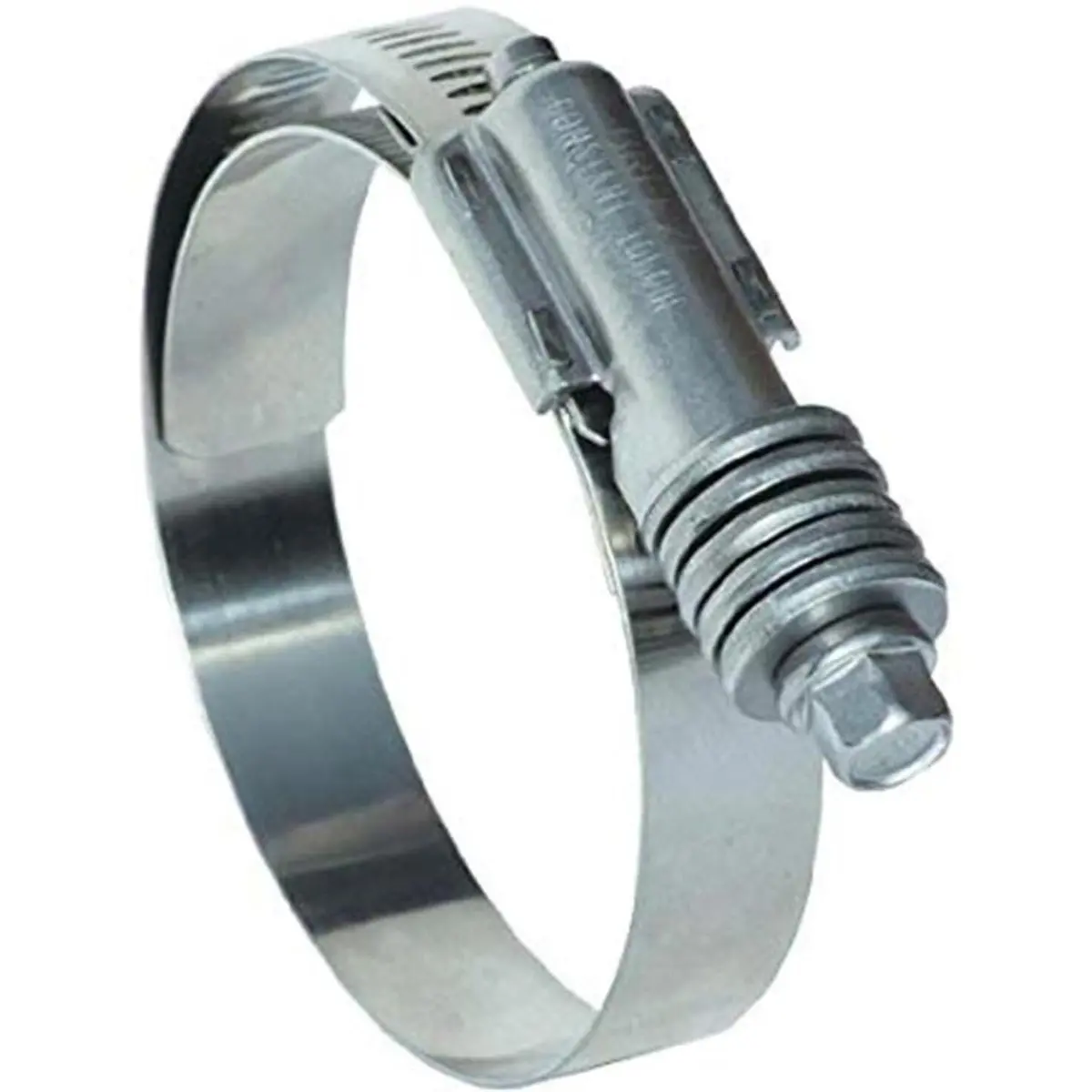

Virtually all rubber hose compresses after the installation of a clamping device, resulting in an almost immediate torque loss that can exceed 80% of installation torque. Similarly, virtually all metal connections expand as a system heats up, and then contracts as the system cools. Conventional worm gear, T-bolt, and other clamps are passive, in that expansion or contraction of components cannot be compensated for with out re-tightening or loosening the clamps. This clamping system is an “active” clamping mechanism, which monitors and then compensates for the changes by actually changing diameter through a unique worm gear Belleville assembly.
Features:
- “Active” clamping mechanism
- Unique worm gear Belleville assembly
Specifications:
- Max. Torque:
- Smaller I.D. sizes up to 3 1/4″ – 4 1/8″ (730-3000) – 30 to 70 in.-lbs
- Larger I.D. sizes above 3 1/4″ – 4 1/8″ (730-3000) – 50 to 120 in.-lbs
- Material:
- Band and Housing: 304 Stainless Steel
- Bellville Spring Washers and Screw: 401 Stainless Steel
Data Sheet
