Description

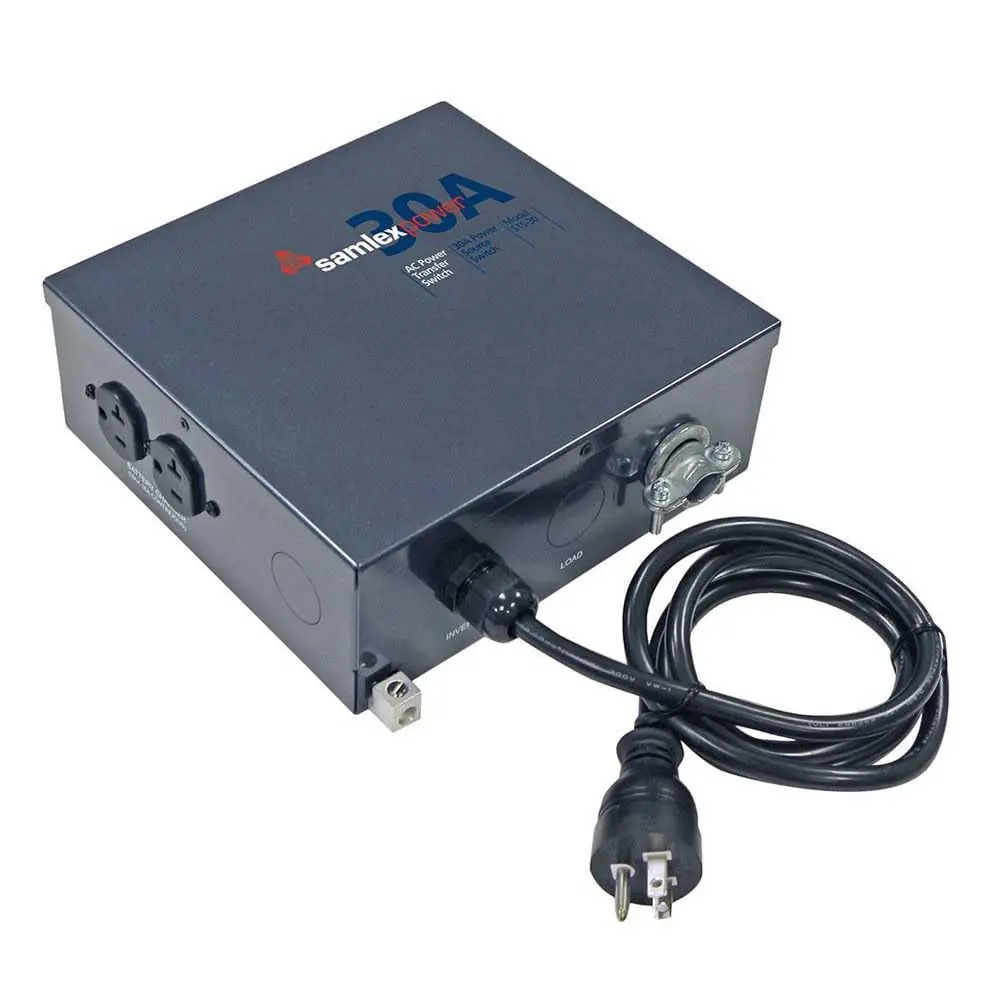

Connect a Samlex Transfer Switch to your generator, or to your inverter/battery bank and have your AC source switched automatically to shore power when you plug in.
• Automatically switches between 2 separate AC input sources: Utility Power and a Generator; or Utility Power and Inverter; or Generator and Inverter
• Has rated capacity of 30 Amps at 120 VAC and is suitable for 30 Amp Utility Power Cord and Generator of up to 3.6 KVA capacity
• Uses heavy duty Double Pole Double Throw (DPDT) relay for switching both the Line and Neutral
• Can be installed on the line side of the main breaker panel allowing switching of the entire load or on the load side to only switch dedicated circuits
• DIP Switch select to enable time delay of 20 to 25 sec when transferring to a generator
• Comes with a standard North American power cord for convenient connection to 15 Amp NEMA5-15R receptacles on a generator or an inverter with up to 1800 VA capacity (Replace this cord with 30 Amp cord if full 30 Amp capacity is required)
• NEMA5-20R Duplex Receptacle for convenient connection of battery charger
