Description

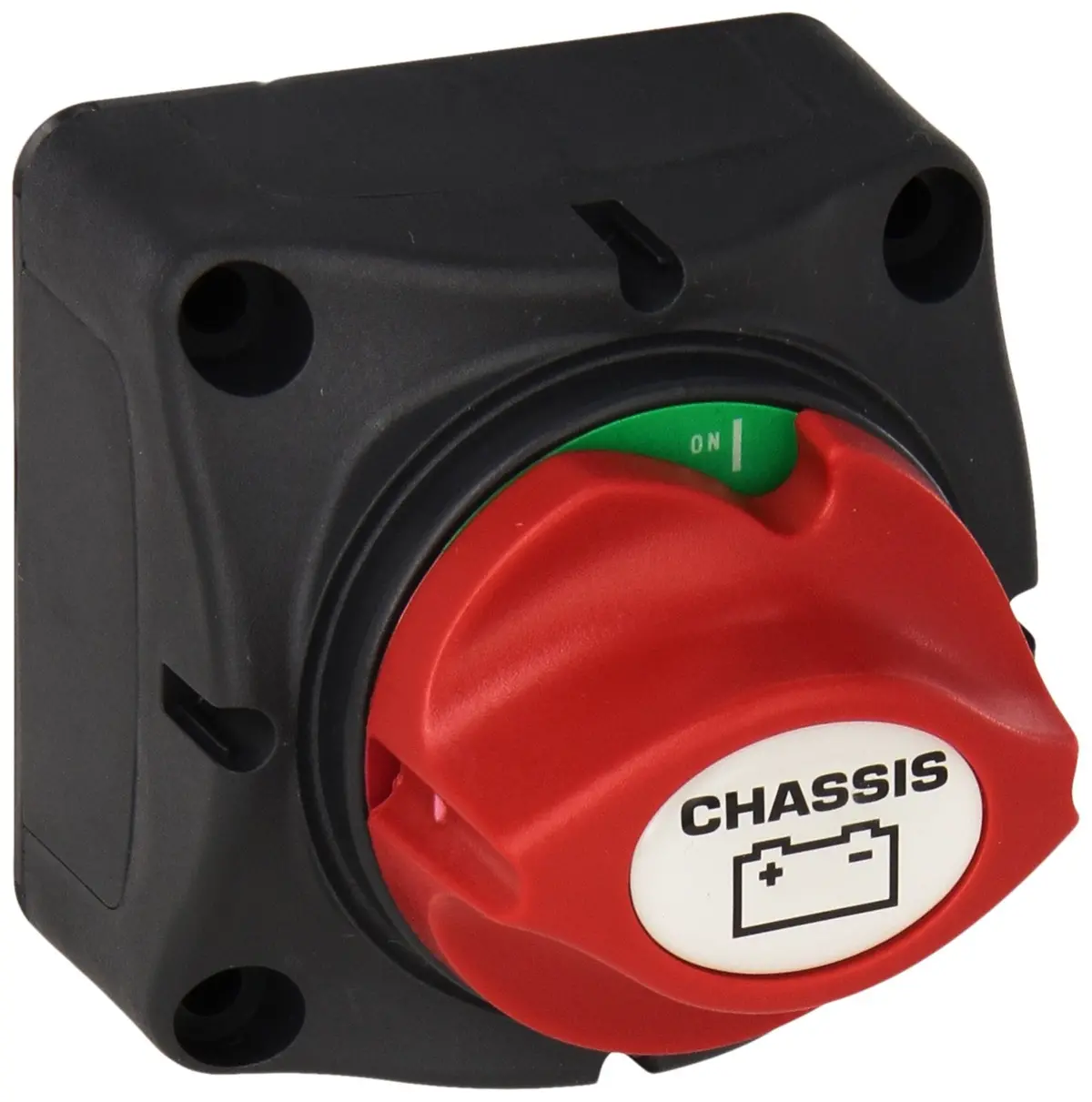

Can be used as a stand alone unit, or locked together with other switches. Features a control knob which cannot be removed while in the ON or OFF position, but it can be removed by switching to an anti-clockwise 45° position. Also features removable side plates on 4 sides for access of up to 1/0 cables plus a rear cover insulating the rear terminals against any short circuits.Specifications:
• Continuous Rating: 275 Amps DC
• Intermittent Rating: 455 Amps DC
• Cranking Rating: 1250 Amps DC
• Voltage Rating: 48 Volts DC
• Operation: On/Off
• Recessed or Surface Mount
• Ignition Protected
• Termination Stud Size: 3/8″ (2 x 10mm)
• Dimensions: 2.75″ x 2.75″ x 3″H (69 x 69 x 75mm H)
• Tin plated copper studs and nuts
