Description

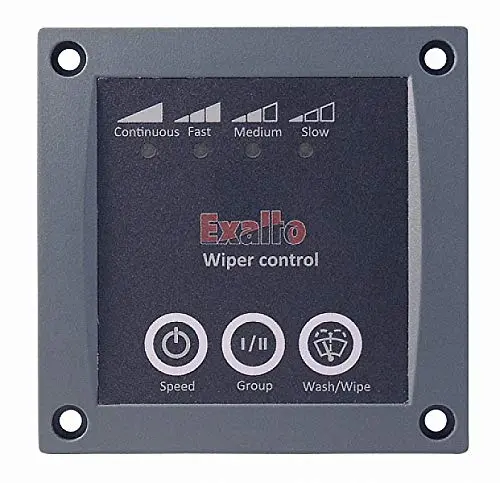

Control panel for up to four 12V and 24V motors. Allows for synchronized operation of up to four wiper motors at four speed settings. Wiper motors are wired into two groups of up to two motors each. Made of UV-safe ABS plastic. Touchpad can be installed easily using a standard holesaw cutout. This control is compatible with Coastal Series wiper systems. This control is NOT compatible with W38 wiper motors.
Features:
- Four Operating Speeds: Low, High, 2 intermittent levels (with 5-second and 10-second delay)
- Turn wiper groups on/off independently or together
- Self-parks all wipers
- Smart wipe-wash program controls solenoid or reservoir pump
- Includes integral 15A fuse
Specifications:
- Dimensions: 3.5″ x 3.5″ x 2.4″ (90 x 90 x 61 mm)
- Cutout Dimensions: 3″ (75 mm) diameter
- Internal power consumption: 2W
- Output per wiper connection: 3A max
- Output per wash contact: 3A max
- Compatible with: Roca, Speich, Afi, TMC or American Bosch Wipers
- Do Not Use With: Imtra’s W38 Wiper Motors
