Description

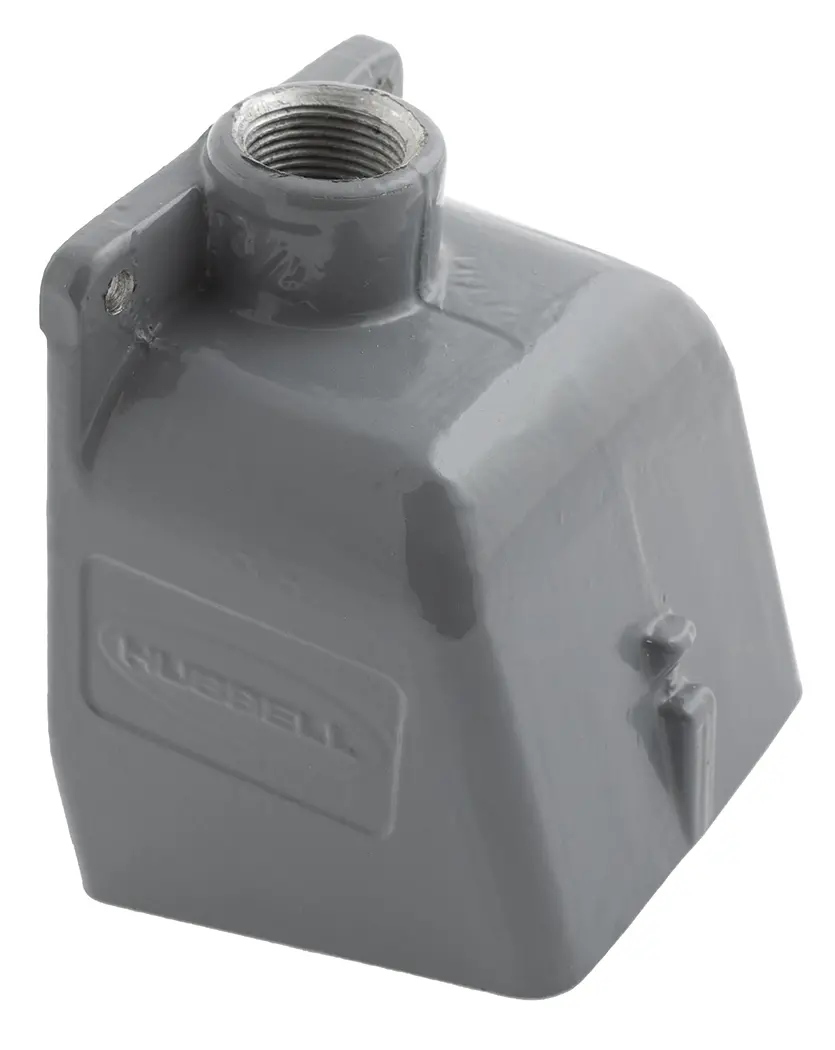

Hubbell manufactures an extensive line of back boxes for use with IEC Pin and Sleeve devices. Each back box is designed to give the user the maximum amount of wiring room while achieving grounding to metallic conduit. Hubbell back boxes are available in non-metallic and cast metal versions.
General Specifications:
- Item Type: Mounting box
- Application: For 100A and 125A devices
- Knockouts: 1 1/2″ NPT
- Mounting Hardware: Mounting screws
- Number of Outlets: Accepts 1-Device
- Series: Back boxes and adapters
- Style: 15 Degree
- Temperature Range: Limited by device
- Type: Angled back box
- Cable Entry: Through hub
- UL Raintight and External Icing Test
- CSA Certified
Metallic Box Specifications:
- Color: Aluminum
- Construction: Cast
- EU RoHS Indicator: No
- Material: Aluminum
- Moisture Resistance: IP67 Suitability
Non-Metallic Box Specifications:
- Color: Grey
- Construction: Molded
- EU RoHS Indicator: Yes
- Material: Thermoplastic
- Moisture Resistance: IP57 Suitability
Dimensional Drawing for Metallic Box
Dimensional Drawing for Non-Metallic Box
WARNING
This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm.
For more information go to www.p65warnings.ca.gov.
