Groco PNC-2000 2-Inch Bronze NPT Check Valve for Marine Systems

Description

PNC Series is offered to simplify plumbing assembly, reduce cost and save space. PNC Series Check Valves can be used to keep a pump primed that is not self priming, on bilge pumps to keep the pump from cycling on and off from water draining back into the sump from the discharge line after the pump shuts off, and are sometimes used in hot water heaters to prevent the heated water from draining back to the tank.

Features:

• C83600 cast bronze construction
• Internal check valve imposes almost zero flow restriction
• Requires less than 1/2 PSI to open
• Colored bands indicate flow direction (green to red)
• Not suitable for use with diesel fuel or gasoline

Specifications:

• Maximum Recommended Temperature: 176°F (80°C)
• PSI to Open: 0.45

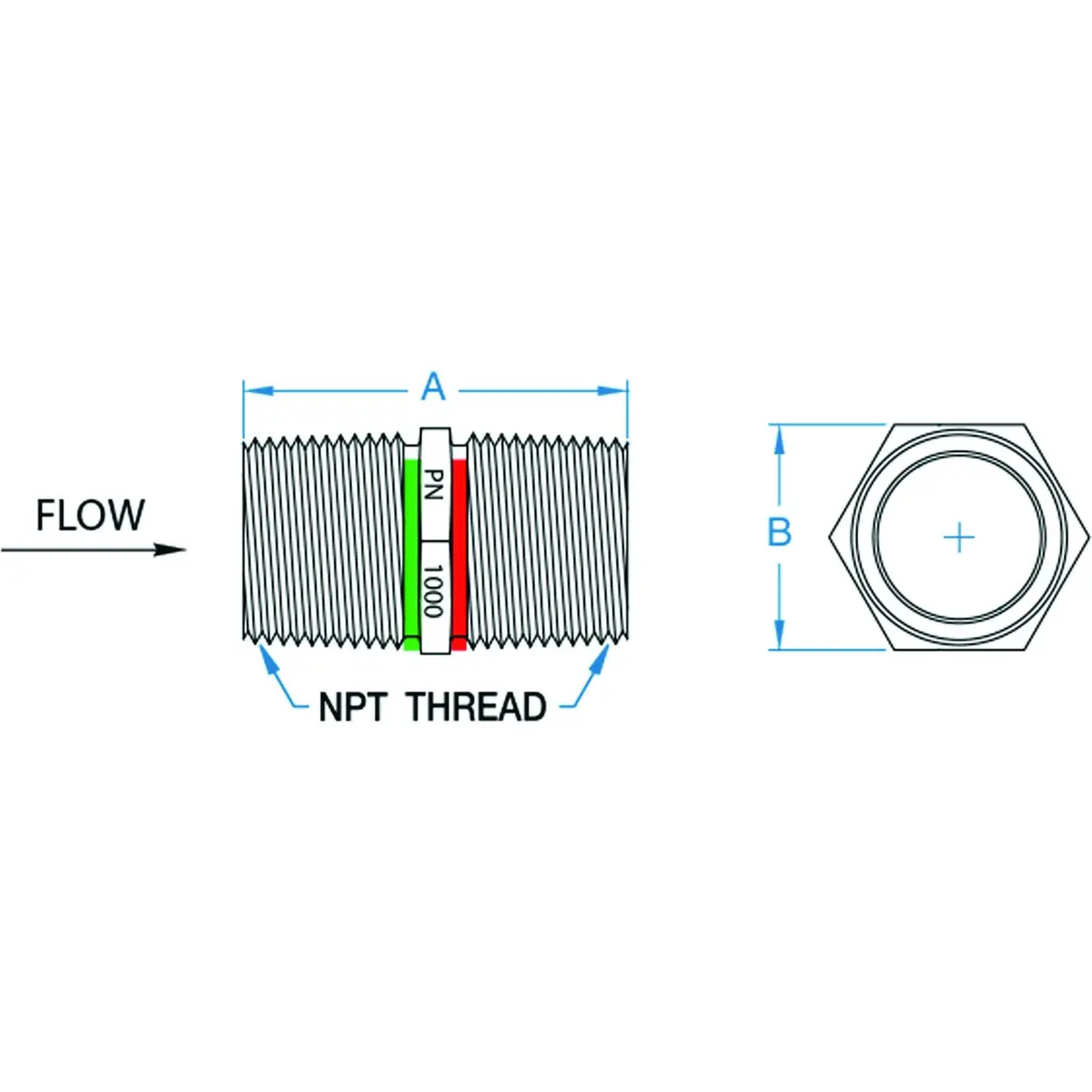

• 1/2″ NPT Dimensions:
  • A: 1.77″
  • B: 0.88″
• 3/4″ NPT Dimensions:
  • A: 1.77″
  • B: 1.06″
• 1″ NPT Dimensions:
  • A: 2.34″
  • B: 1.38″
• 1 1/4″ NPT Dimensions:
  • A: 2.51″
  • B: 1.75″
• 1 1/2″ NPT Dimensions:
  • A: 2.49″
  • B: 2″
• 2″ NPT Dimensions:
  • A: 2.37″
  • B: 2.5″
