Description
Features:
- 1 1/4″ sizes and larger include a grease zerk fitting for lubrication (use only with the valve in the open position) or for draining
- Handle has square hole to accept standard ratchet that helps you to reach hard-to-reach valves and eases actuation of hard to operate valves)
- Thumb-release locking mechanism assures the valve remains in the position selected
- 1000 WOG rated
- #316 SS body
- #304 SS handle and trim
- Bonding attachment
- PTFE seats and seals
- UL listed for fuel or water
- Full flow
- Fits IBVF-S for seacock application

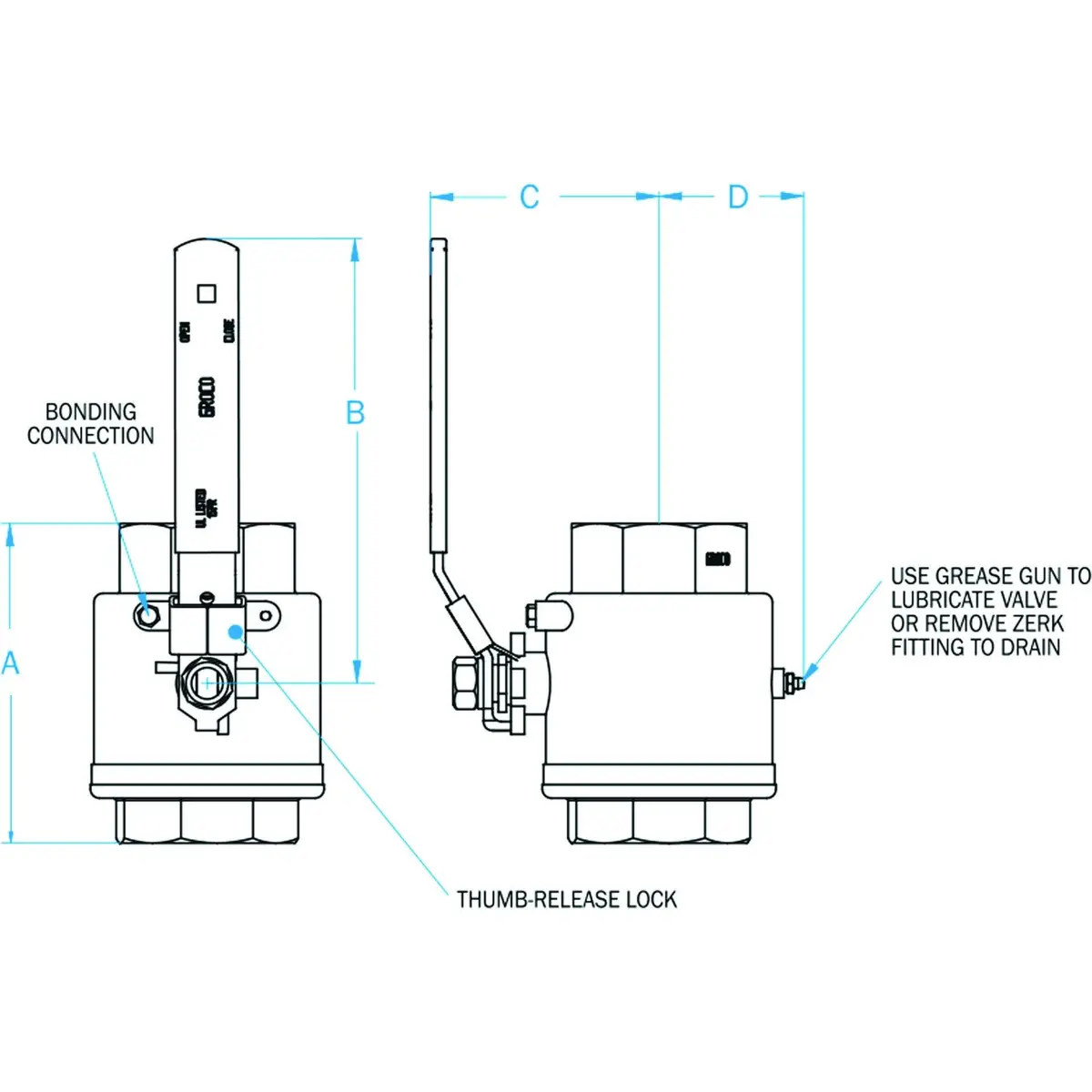

Dimensions:
- 1/4″ and 3/8″ NPT:
- A: 2.2″
- B: 3.92″
- C: 1.83″
- D: 0.61″
- 1/2″ NPT:
- A: 2.48″
- B: 3.92″
- C: 1.9″
- D: 1.28″
- 3/4″ NPT:
- A: 2.98″
- B: 4.98″
- C: 2.43″
- D: 1.38″
- E: 8.17″
- 1″ NPT:
- A: 3.3″
- B: 4.98″
- C: 2.73″
- D: 1.6″
- E: 8.33″
- 1 1/4″ NPT:
- A: 3.86″
- B: 6.02″
- C: 3.18″
- D: 1.8″
- E: 9.65″
- 1 1/2″ NPT:
- A: 4.25″
- B: 6.02″
- C: 3.43″
- D: 2.07″
- E: 9.9″
- 2″ NPT:
- A: 4.75″
- B: 7.56″
- C: 3.76″
- D: 2.4″
- E: 11.66″
- 2 1/2″ NPT:
- A: 6.32″
- B: 9.76″
- C: 4.7″
- D: 2.75″
- E: 15.27″
- 3″ NPT:
- A: 7.33″
- B: 9.76″
- C: 5.12″
- D: 4″
- E: 15:83″
Installation.
