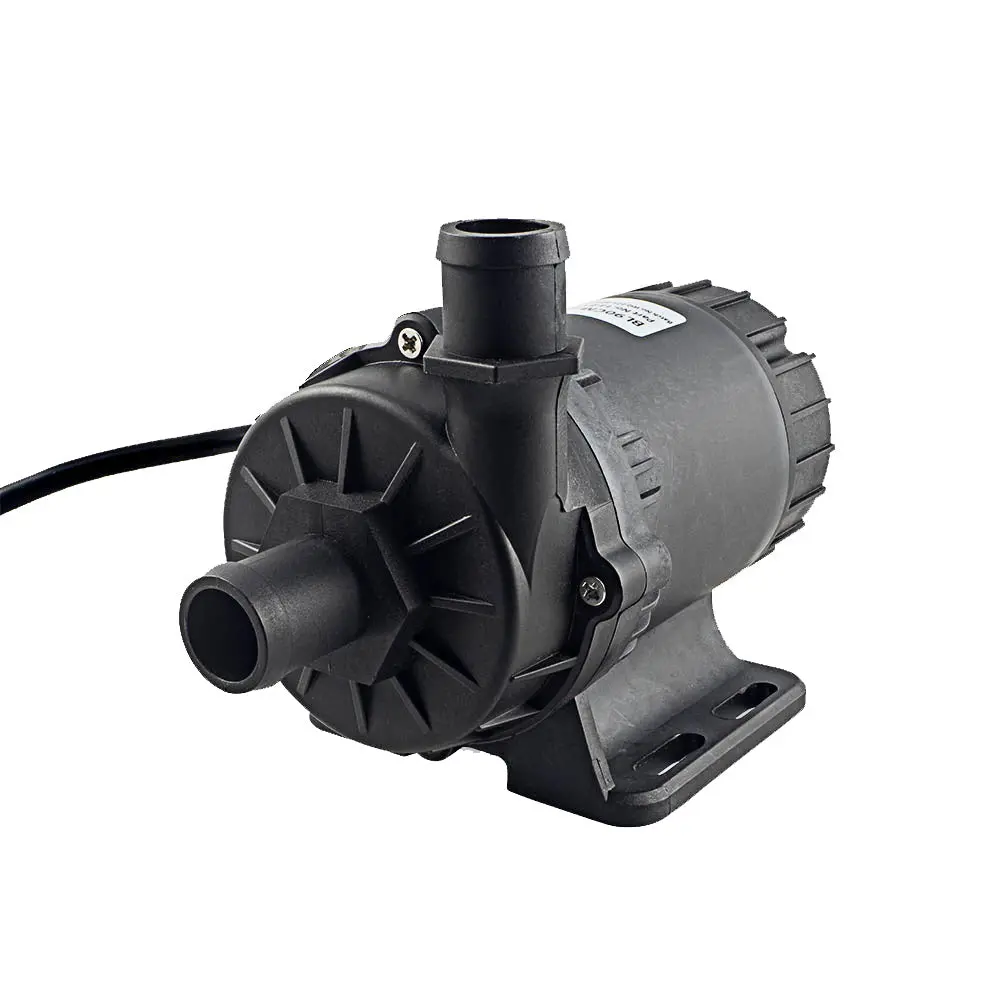

High-Performance DC Driven Circulation Pumps
These DC-driven circulation pumps are engineered for the efficient movement of water and antifreeze mixtures within heating or cooling systems. Designed for versatility, they are the ideal solution for marine vessels, buses, motor homes, and commercial vehicles. These units combine a compact footprint with high-efficiency performance, ensuring reliable climate control and fluid circulation in demanding environments.
Built for longevity and heavy-duty use, these pumps feature a maintenance-free brushless motor with a magnetic isolated design. The construction includes a ceramic shaft and carbon fiber sleeve for superior wear resistance, while the IP68 waterproof classification ensures complete protection against water ingress. Rated for continuous duty, these pumps operate with minimal noise, making them perfect for onboard applications where quiet operation is essential.
Features:
- Brushless magnetic isolated motor design for enhanced reliability
- Rated for continuous duty applications
- Long service life: 20,000 hours
- Durable pump housing materials: ABS, PES/SPS/PA66
- Motor IP classification: IP 68 (completely waterproof)
- Quiet operation: 35dB noise class
- Maximum liquid temperature: 80°C for Continuous Duty and 100°C for Intermittent use
Technical Specifications:
- Port size: 3/4″ (20mm)
- Flow capacity: Up to 51 l/min
- Maximum power consumption: Up to 80W
- Maximum load: Up to 6.6A
- Advanced brushless DC control for high efficiency
*Includes pump and motor assembly
